JADE Quartet

USB DAC / Integrated Amplifiers

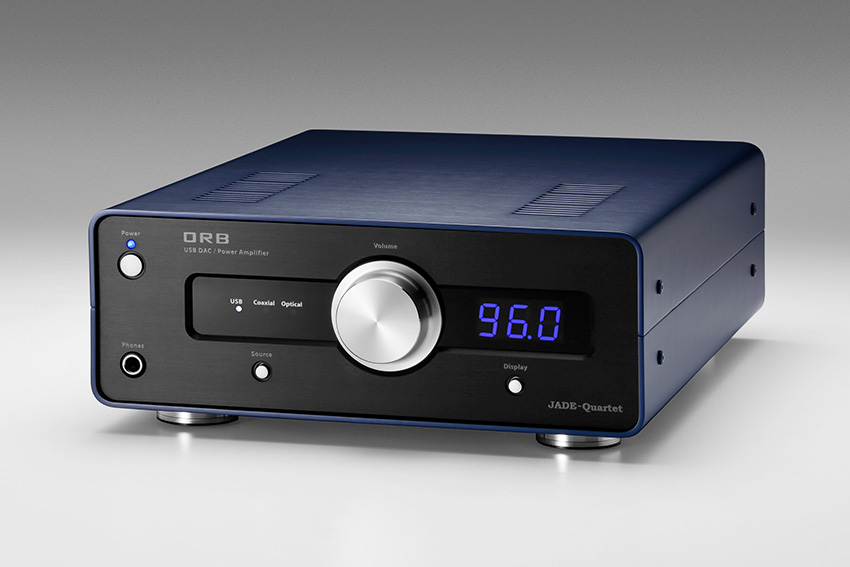

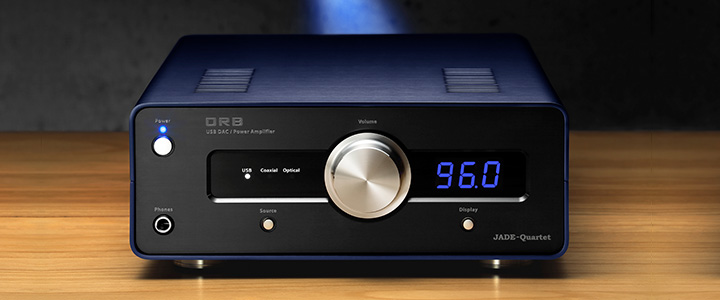

JADE Quartet Dark Navy
*Limited model (Limited to 11 units)

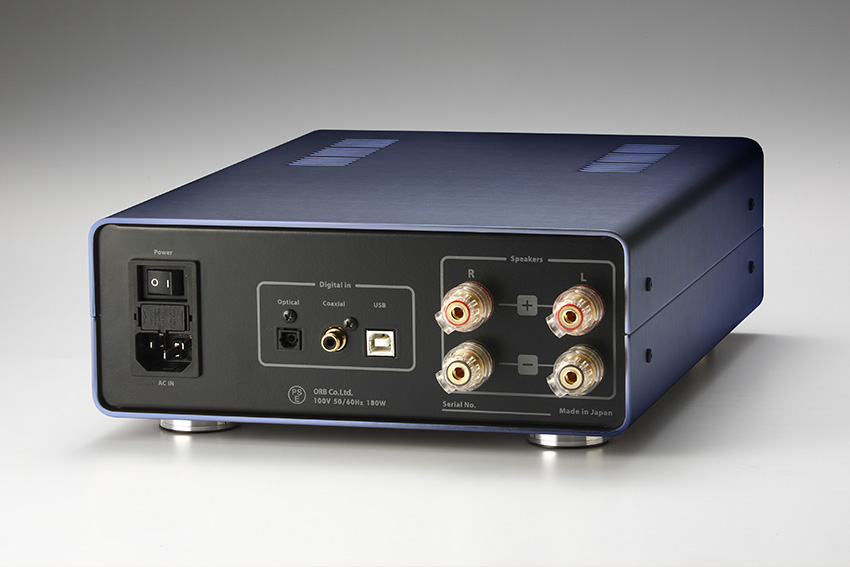

JADE Quartet Dark Navy - Rear

JADE Fyra

JADE Quartet Dark Navy and JADE Fyra are full digital integrated amp with compact body.
Those products have ICE Powerclass D amp and MUSES01 for operational amplifier. JADE Quartet Dark Navy and JADE Fyra provide natural and clean sound by combining ICE Power and MUSES01. You can easily enjoy the high-resolution audio with those products.

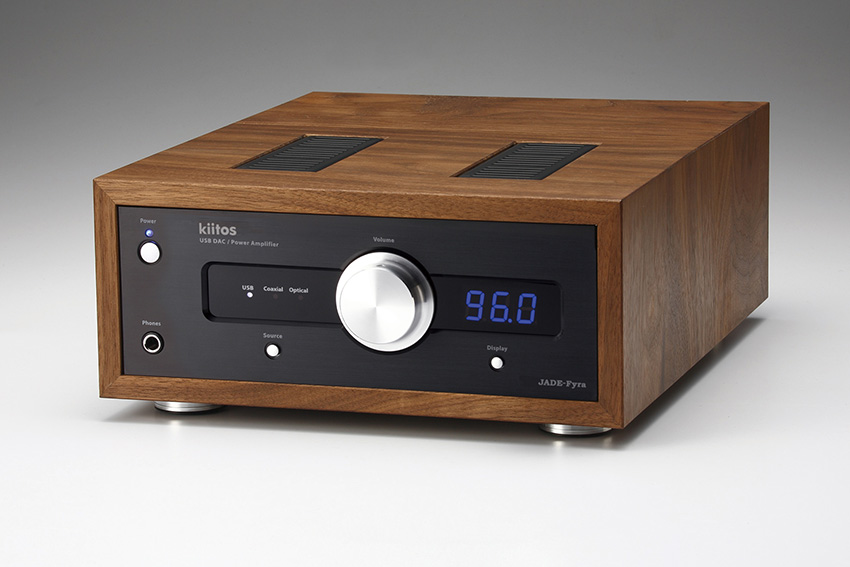

JADE Quartet Dark Navy is the aluminum body model and JADE Fyra is the solid walnut model which is made in collaboration with woodwork hand-craft furniture studio 'stack Furniture Lab' in Osaka.
Using the hand-made solid walnut provides modern beauty for your life style and natural smooth sound.
Enjoy your audio life with JADE Quartet Dark Navy and JADE Fyra coming from our passion for audio!

Input :	Digital : USB B type×1 Optical : optical terminal×1 Coaxial : coaxial RCA terminal×1
Output :	Speakers : speaker terminal×1 system Recommended load impedance 3～8Ω
Phones :	φ6.3 stereo jack×1 Recommended load impedance 16～300Ω
Supporting sampling frequency :	USB(PC) : 8～96kHz Optical : 8～192kHz Coaxial : 8～192kHz
Frequency characteristic :	0Hz～20kHz　＋0dB,-0.5dB、fs＝44.1kHz
Dynamic range :	117dBA　fs=44.1kHz
Total harmonic distortion :	0.01% 1W (8Ω,1kHz,fs＝44.1kHz)
Declared power :	[Speakers] 50W＋50W (8Ω) 90W＋90W(4Ω) [Phones] 50mW ＋ 50mW
Energy consumption :	10W (Standby mode) 110W (Energy consumption 8Ω)
Size :	W : 238 D : 335 H : 96mm About 4kg
Country of manufacture :	Made in JAPAN
