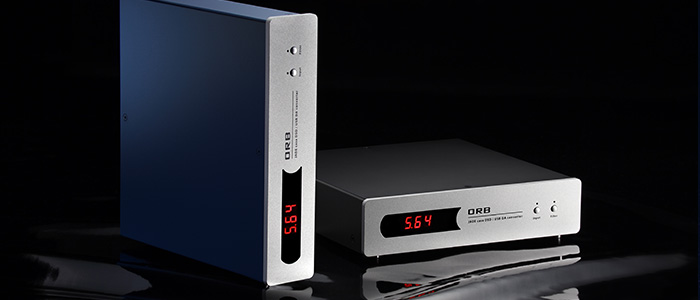

JADE casa DSD is the D/A converter which pursues not only sound quality but also appearance design.
It provides beautiful clear sound and stylish appearance for you.
This product has asynchronous transfer function with USB 2.0 hi gh speed mode and it supports PCM data up to 192kHz. In addition JADE casa DSD supports 2.82MHz and 5.64 MHz DSD data as well by DoP/dCS method.

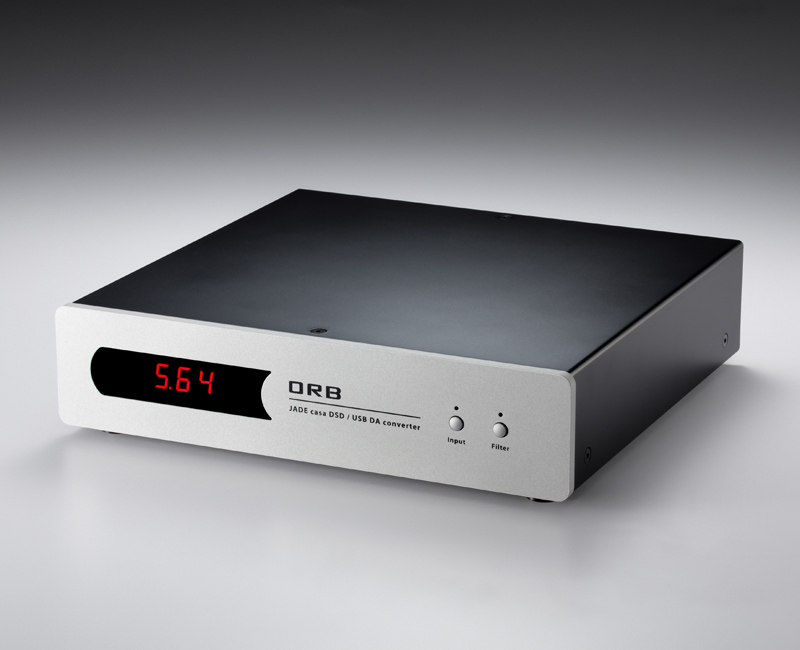

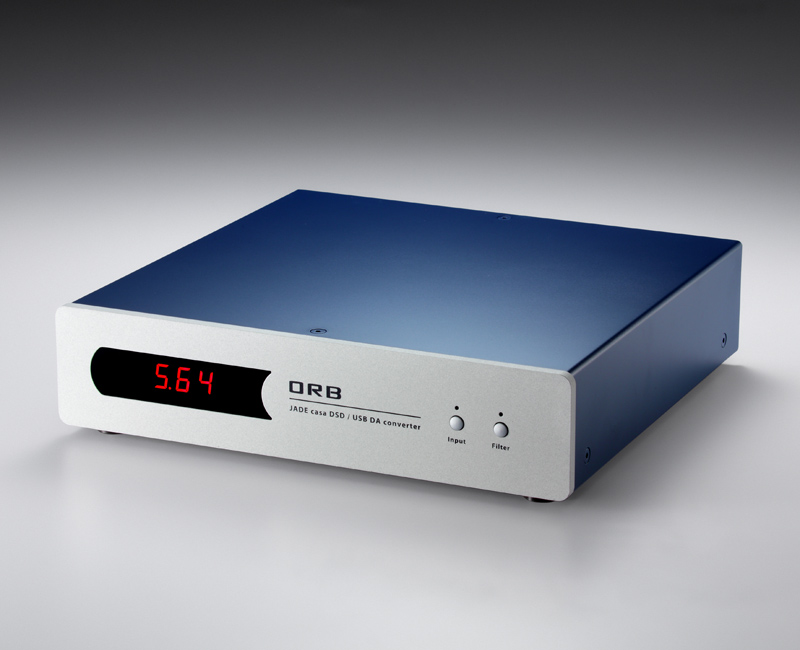

There are 3 types of color, Black, Navy, Ocean blue.

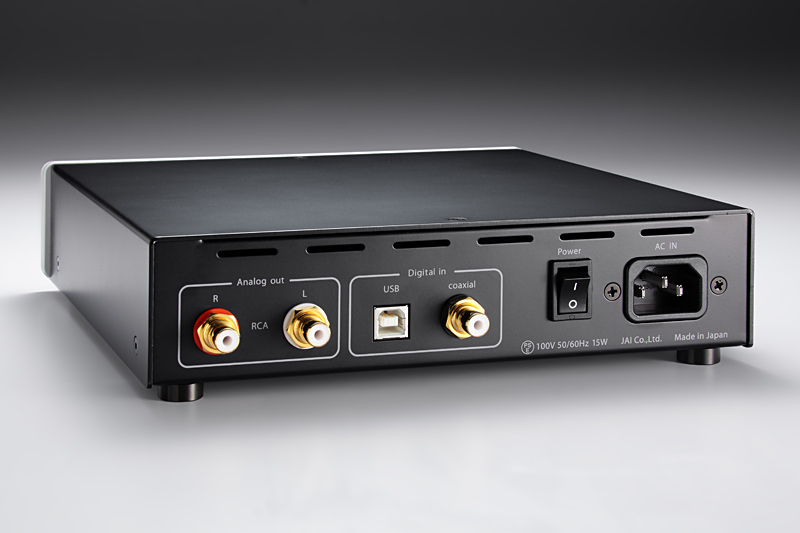

Input :

USB:USB B type ×1
Coaxial:RCA ×1

Output :

Analog:RCA (unbalance) ×1

Supporting sampling frequency :

USB:PCM:32kHz~192kHz(16,24bit)
DSD:2.82MHz,5.64MHz(1bit)
PCM 32kHz~192kHz(16,20,24bit)

Frequency characteristic :

20Hz~20kHz +0dB、-2.0dB

Energy consumption :

15W

Size :

W:220×D:220×H:50 mm
Weight :

About 1.8kg

Country of manufacture : Made in JAPAN
